Connect a SIP trunk to Ringg AI

Your own voice platform (PBX, SBC or contact centre) talks to Ringg over standard , with no telephony provider in between: you keep your carrier and numbers, and Ringg supplies the agent that handles the conversation (bring your own telephony). A trunk works in two directions:

Inbound: your switch sends an INVITE to Ringg. Ringg answers, picks the agent and runs the conversation.
Outbound: Ringg sends an INVITE to your trunk, and your platform routes the call to the customer.

Before you start

An agent

The agent that answers inbound INVITEs or places outbound calls over the trunk.

An API key

Optional: only to register inbound callees by API.

What each side provides

Ringg gives you	You give Ringg
A SIP ingress IP and ports	Your signalling IP or CIDR, so we can allowlist it
An RTP media range to allow through your firewall	Your trunk host and port for outbound calls
Agent routing by header or dialled number	Optional SIP auth credentials, if you do not use IP auth
Context injection through SIP headers	The transfer destination, if you use call transfer

Set up the trunk in the dashboard

Enterprise workspaces configure SIP trunks themselves: Numbers → Add number, select SIP, then open Configure provider (the gear) to reach the Configure SIP Trunks panel. With no trunk yet, the panel opens on the Add form. SIP isn’t offered on the Saudi Arabia or UAE regional dashboards; there, and for other workspaces, contact Ringg.

Every trunk field, saving, and the trunk appearing in the list

Add a trunk

In Configure SIP Trunks, select Add and fill in the trunk:

Field	Shown for	Notes
Name	All	Required.
Direction	All	Inbound (default), Outbound or Both.
Inbound sources	Inbound, Both	Public IPv4 addresses or CIDR blocks, `/18` or narrower, that your INVITEs come from. Add at least one. A range that overlaps another trunk’s is refused.
Outbound target	Outbound, Both	`host:port` where Ringg sends INVITEs. The port is required.
Tech prefix	Outbound, Both	Optional. Prepended to the dialled number; 1–16 characters (A–Z, 0–9, `#`, `*`).
Strip digits	Outbound, Both	Optional. Removes this many leading characters (0–20) from the dialled number; the `+` counts as one.
Transport	All	UDP (default), TCP or TLS.
Authentication	All	Off by default. See below.

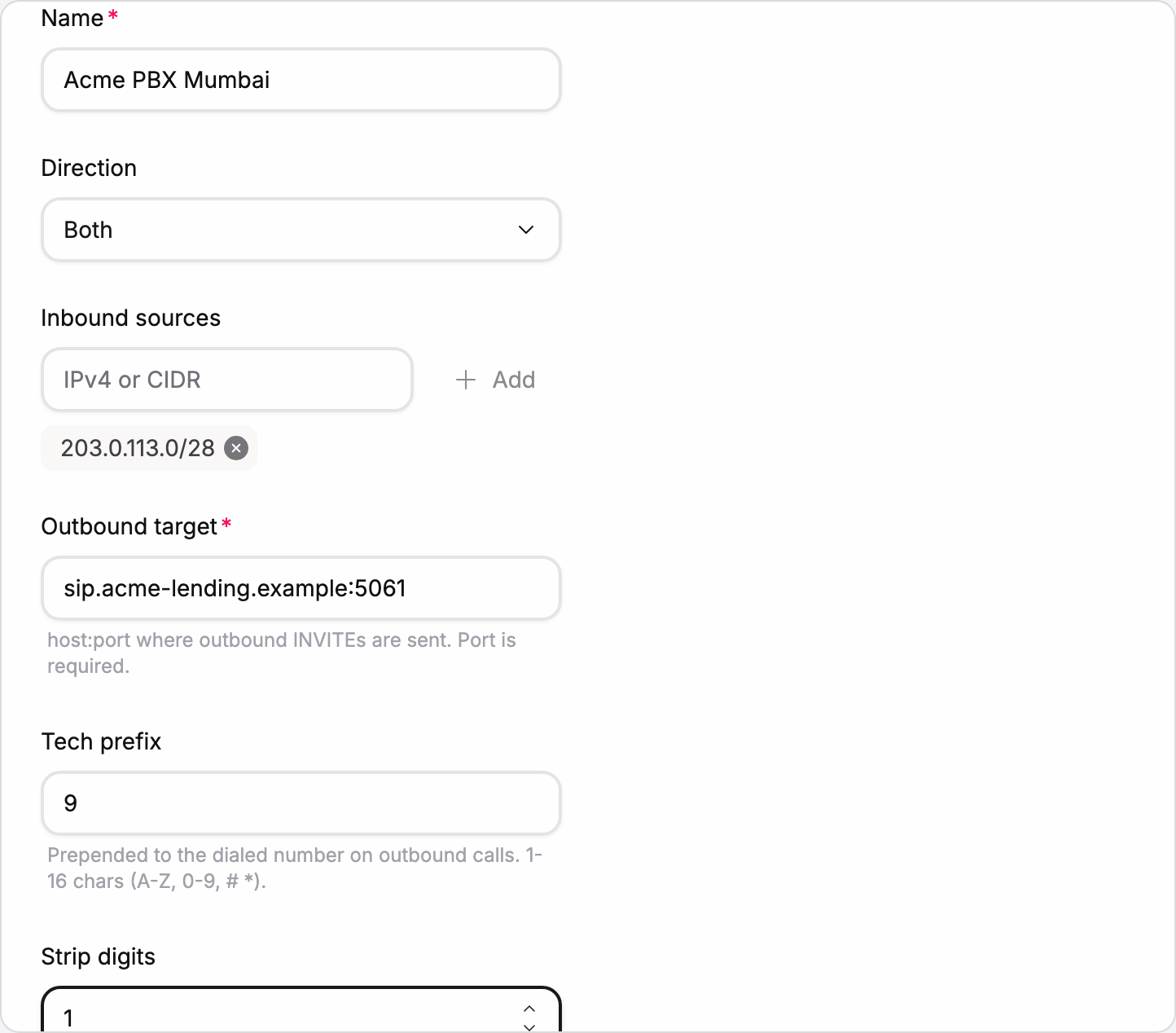

SIP trunk form with Name Acme PBX Mumbai, Direction Both, an inbound source chip 203.0.113.0/28, Outbound target sip.acme-lending.example:5061, Tech prefix 9 and Strip digits 1 — A trunk with direction Both: inbound sources, outbound target, tech prefix, strip digits

With Authentication on, choose the Auth mode: Register (periodic REGISTER to your platform; needs direction Outbound or Both) or Digest (answers 401 challenges on outbound INVITEs). Then enter Username, Password and optionally Realm (defaults to the outbound host). Register also takes Expires (seconds), 60 to 86400 (default 3600), and Register delay (seconds), 0 to 3600 (default 0).

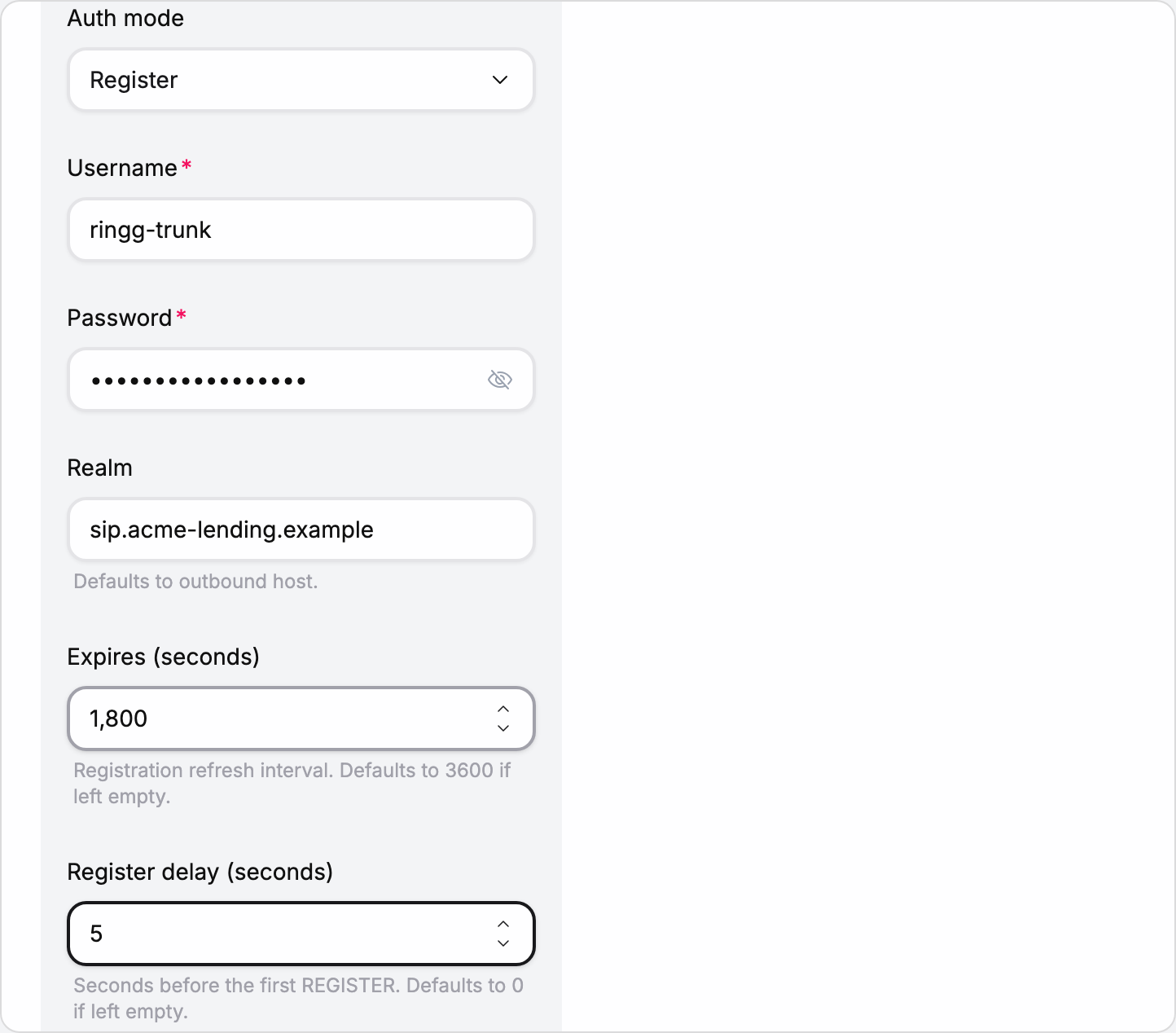

Authentication section with Auth mode Register, Username ringg-trunk, a masked Password, Realm sip.acme-lending.example, Expires 1,800 seconds and Register delay 5 seconds — The Authentication fields for Register mode

Save

”SIP trunk created successfully.” appears and the trunk is listed. Use the pencil to edit it or the trash icon to delete it.

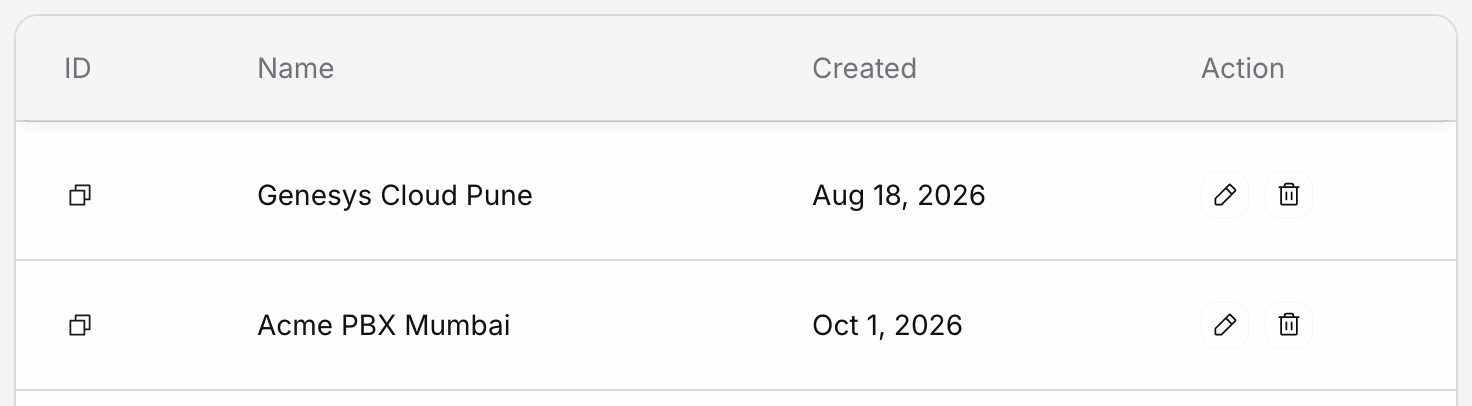

SIP trunks table listing Genesys Cloud Pune and Acme PBX Mumbai with their created dates and edit and delete buttons — Configure SIP Trunks after saving

Add your numbers

With the trunk selected in Add number, type your numbers on the Add custom tab. See Add a number by hand. Then attach them to agents or use them as caller ID.

Network requirements

SIP signalling

Setting	Value	Media
SIP domain (FQDN)	`sip.ringg.ai`
UDP	`5060`	Plain RTP
TCP	`5060`	Plain RTP
TLS	`5061`	SRTP

sip:sip.ringg.ai:5060          UDP or TCP
sips:sip.ringg.ai:5061         TLS

Use sip.ringg.ai as the destination in your trunk configuration. Ringg shares the underlying ingress and media IP addresses with you during onboarding, for your firewall and ACL rules. Media encryption follows the signalling transport, and is not configured separately. Connect over TLS on 5061 and the media is negotiated as SDES-SRTP (RTP/SAVP) using the AES_CM_128_HMAC_SHA1_80 cipher suite. Connect over UDP or TCP on 5060 and the media is plain RTP. If you require encrypted media, use TLS. There is no option to run SRTP over a plaintext signalling transport.

For TLS, always connect to sips:sip.ringg.ai:5061 rather than to the IP address. The certificate is issued for the hostname sip.ringg.ai, so a client that connects by IP and validates the certificate will fail on a hostname mismatch.

RTP media

Media is bridged on the same address as signalling.

Setting	Value
RTP IP	Shared during onboarding
RTP ports	`10000` to `60000` UDP
Encryption	SDES-SRTP on TLS trunks, plain RTP on UDP and TCP trunks

The most common cause of a connected call with no audio is a firewall that permits SIP on 5060 but blocks the RTP range. Allow UDP 10000-60000 in both directions to the Ringg media addresses before testing.

Codecs

Codec	Support
G.711 u-law (PCMU)	Supported
G.711 a-law (PCMA)	Supported

Session timers

Ringg supports RFC 4028 session timers with a minimum Session-Expires of 1800 seconds. A shorter value is rejected with 422 Session Interval Too Small. Either raise the value on your side or omit the header.

How a call flows

Ringg terminates the SIP leg, bridges the audio into the AI bot engine, and runs the conversation using the agent configuration resolved from the call. If the agent decides to hand the call to a human, Ringg sends a SIP REFER back to your platform.

Inbound: your platform to Ringg

Allowlisting

Ringg authenticates inbound calls by source IP. Send Ringg the signalling IP or CIDR your platform originates from, and it is added to the inbound ACL. Ringg accepts public IPv4 addresses and CIDR blocks up to /18; anything broader, IPv6 and private ranges are rejected. If your carrier publishes a wider egress pool, send the specific ranges you originate from.

Custom SIP headers

Ringg reads these headers from the inbound INVITE. All are optional except where your chosen routing method requires them.

Header	Purpose	Example
`X-Agent-ID`	Route directly to a specific AI agent	`11111111-2222-4333-8444-555555555555`
`X-Workspace-ID`	Identifies your Ringg workspace	`aaaaaaaa-bbbb-4ccc-8ddd-eeeeeeeeeeee`
`X-CLIENT-ID`	Per-user lookup against your registered callees	`+919XXXXXXXXX`
`X-Custom-Vars`	Key and value pairs injected into the conversation	`customer_name=Ravi Kumar&account_id=ACC-9910`
`X-Call-ID`	Your own call identifier, used for tracking instead of the SIP Call-ID	`enterprise-call-001`
`User-to-User`	RFC 7433 UUI payload, used by Genesys and similar platforms	See Genesys Cloud

Example INVITE:

INVITE sip:+919XXXXXXXXX@sip.ringg.ai SIP/2.0
X-Agent-ID: 11111111-2222-4333-8444-555555555555
X-Workspace-ID: aaaaaaaa-bbbb-4ccc-8ddd-eeeeeeeeeeee
X-Custom-Vars: customer_name=Ravi Kumar&account_id=ACC-9910
X-Call-ID: enterprise-call-001

Choosing which agent answers

Ringg resolves the agent in this order: X-Agent-ID first, then X-CLIENT-ID, then the dialled number.

Method	Use it when
`X-Agent-ID`	Your platform already knows which agent should handle the call. Ringg routes straight to it and skips every lookup.
`X-CLIENT-ID`	You registered the caller ahead of time as an inbound callee. Ringg uses the agent and variables stored on that record.
Dialled number	Neither header is present. Ringg takes the number from the To header or Request-URI and routes by that number’s configuration in your workspace (Attach a number).

Passing context into the conversation

Context lets the agent open the call already knowing who it is speaking to, instead of asking.

X-Custom-Vars

X-Custom-Vars carries an & separated list of key=value pairs:

X-Custom-Vars: customer_name=Ravi Kumar&account_id=ACC-9910&loan_amount=50000

Using the values

Every key becomes available in the agent’s system prompt and intro message as @{{key}}:

System prompt:
  You are speaking to @{{customer_name}} about account @{{account_id}}.

Intro message:
  Hello @{{customer_name}}, this is Ringg calling about your loan of @{{loan_amount}}.

Keep values short and avoid characters that need escaping in a SIP header. & and = are the separators in X-Custom-Vars, so a value containing either does not parse.

Genesys Cloud (BYOC)

Genesys Cloud BYOC trunks do not generally send X-Custom-Vars. They carry call context in the standard RFC 7433 User-to-User header instead, and Ringg supports that natively.

The header

User-to-User: 00637573746f6d65725f6e616d653d5261...;encoding=hex;purpose=isdn-uui;content=isdn-uui

Encoding

Property	Detail
Encoding	Hex, declared with `encoding=hex`
Leading byte	`00` protocol discriminator, stripped by Ringg
Payload	Once decoded, an `&` separated `key=value` string, the same shape as `X-Custom-Vars`
Multiple headers	Ringg reads up to 8 `User-to-User` header instances and concatenates them

A decoded payload looks like this:

customer_name=Ravi Kumar&account_id=ACC-9910&ticket_id=TKT-4471&lang=en-in&priority=high

What Ringg does with it

Reads every User-to-User header on the inbound INVITE.
Decodes the hex payload and removes the leading 00 discriminator.
Makes each decoded key a conversation variable, usable as @{{key}} exactly like X-Custom-Vars.
On transfer, puts the UUI back on the Refer-To URI so your platform keeps the same context on the onward leg.

Keep the UUI small

Keep the UUI payload under roughly 150 bytes: send identifiers such as a ticket or conversation ID rather than free text, and look up the detail on your side after the transfer completes.

UUI content is hex encoded, so every byte of payload becomes two characters on the wire; a 200 byte payload is a 400 character header. On transfer that header travels inside the Refer-To URI of the REFER, and a large UUI can push the REFER past the 1500 byte MTU into IP fragmentation. Some SBCs and firewalls silently drop fragments, and the transfer fails with no useful error.

Outbound: Ringg to your trunk

For outbound calls, Ringg originates the INVITE toward your platform from a fixed set of source addresses. Ringg provides these during onboarding, and you allow them in your inbound firewall and SIP ACL.

What Ringg needs from you

Item	Required	Notes
Public host or IP	Required	The address Ringg sends the INVITE to
Port	Required	Typically `5060`, or `5061` for TLS
Transport	Required	`udp`, `tcp`, or `tls`
Auth method	Optional	IP based, digest, or register. See below
Username and password	Only for digest or register	Not needed for IP based auth
Realm	Optional	Only if your platform challenges with a realm different from its host

Authentication modes

IP based is the simplest and recommended where your platform supports it.

Mode	How it works
IP based	You allowlist the Ringg source addresses on your side; no credentials are exchanged.
Digest	Your platform challenges the INVITE with `401` or `407` and Ringg answers with the username and password you supply.
REGISTER	Ringg registers to your platform on an interval with the credentials you supply, and your platform routes calls to that registration.

With digest or register, send the exact realm your platform challenges with when it differs from its hostname. A realm mismatch makes registration or authentication fail silently and retry indefinitely, with no calls connecting.

Call transfer with SIP REFER

When the AI agent needs to hand the call to a human or another destination, Ringg sends a SIP REFER on the existing dialog. Your platform performs the actual transfer.

What your platform must support

Requirement	Detail
`REFER` method	Advertise `REFER` in your `Allow` header
`Refer-To`	Accept the destination Ringg supplies, as a SIP or SIPS URI
`Referred-By`	Sent by Ringg per RFC 3892
`202 Accepted`	Expected response to the REFER

Behaviour to expect

Many platforms send their own BYE to release the Ringg leg as soon as they accept the REFER. Ringg does not treat this as an error.
A UUI received on the inbound call travels on the Refer-To URI (keep it small). If your transfer destinations carry large UUI payloads, prefer TCP or TLS for the trunk: UDP requests above roughly 1300 bytes are prone to fragmentation, which some networks drop.

Inbound callees

An inbound callee is a record you register with Ringg ahead of time: when this person calls in, use this agent and start the conversation already knowing these facts about them. Use it when your platform cannot attach per-customer context to every INVITE: upload the context once, keyed by the caller’s identifier, and at call time send only X-CLIENT-ID. Each record stores:

The user_id that X-CLIENT-ID is matched against, usually the caller’s number
The agent_id that should handle the call
Any custom variables to inject into the prompt and intro message

Records are upserted: uploading a user_id that already exists overwrites its configuration, so you can re-upload the full list on a schedule. Transliteration runs only when the request carries agent_id. The endpoints below live under https://prod-api.ringg.ai/ca/api/v0 and take your workspace API key in the X-API-KEY header on its own; a request that also carries an Authorization header is rejected. The key identifies the workspace, so no workspace ID is needed.

Upload via CSV

POST /ca/api/v0/inbound-callees/upload
X-API-KEY: $RINGG_API_KEY
Content-Type: multipart/form-data

Field	Type	Required	Description
`csv_file`	file	Required	CSV file containing the callee rows
`column_mapping`	JSON string	Required	Maps Ringg field names to your CSV column names, `{"ringg_field": "csv_column"}`. Must include `user_id` (worked example below)
`agent_id`	string (UUID)	Optional	Assigns one agent to every callee in the upload
`transliterate_callee_name`	bool	Optional	Transliterates `callee_name` into the agent’s language
`transliterate_fields`	JSON array	Optional	Additional fields to transliterate, by agent variable name

phone,name,acc_no
+919XXXXXXXXX,Ravi Kumar,ACC-9910
+919YYYYYYYYY,Priya Sharma,ACC-1122

curl -X POST https://prod-api.ringg.ai/ca/api/v0/inbound-callees/upload \
  -H "X-API-KEY: $RINGG_API_KEY" \
  -F "csv_file=@callees.csv" \
  -F 'column_mapping={"user_id":"phone","callee_name":"name","account_id":"acc_no"}' \
  -F "agent_id=11111111-2222-4333-8444-555555555555"

The mapping key is the Ringg field name, the value is your CSV column heading:

`column_mapping` entry	Reads CSV column	Becomes Ringg field	Used in the agent as
`"user_id": "phone"`	`phone`	`user_id`	matched against `X-CLIENT-ID`
`"callee_name": "name"`	`name`	`callee_name`	`@{{callee_name}}`
`"account_id": "acc_no"`	`acc_no`	`account_id`	`@{{account_id}}`

Your CSV headings can be named anything; only the left side of the mapping has to match the variable names your agent expects. transliterate_fields matches on those same left-side names: with the mapping above, transliterating the customer’s name means passing ["callee_name"], not ["name"]. A value that matches no variable name is silently ignored.

Upload via JSON

POST /ca/api/v0/inbound-callees/upload-json
X-API-KEY: $RINGG_API_KEY
Content-Type: application/json

Field	Type	Required	Description
`callees`	array of objects	Required	Each object needs `user_id`. Every other key becomes a custom variable, stored as a string
`agent_id`	string (UUID)	Optional	Applies to all callees, and overrides any `agent_id` set on a callee object
`transliterate_callee_name`	bool	Optional	Transliterates `callee_name`
`transliterate_fields`	array of strings	Optional	Additional fields to transliterate. Use the agent variable names, the same keys you set on each callee object

{
  "agent_id": "11111111-2222-4333-8444-555555555555",
  "callees": [
    {
      "user_id": "+919XXXXXXXXX",
      "callee_name": "Ravi Kumar",
      "account_id": "ACC-9910",
      "loan_amount": "50000"
    },
    {
      "user_id": "+919YYYYYYYYY",
      "callee_name": "Priya Sharma",
      "account_id": "ACC-1122"
    }
  ]
}

Upload response

Both endpoints return the same shape:

{
  "created_count": 2,
  "failed_rows": [
    { "line_number": 4, "error": "user_id is required" }
  ]
}

Field	Description
`created_count`	Number of records created or updated
`failed_rows`	Skipped rows, with a 1 based line number and the reason

List callees

GET /ca/api/v0/inbound-callees
X-API-KEY: $RINGG_API_KEY

Parameter	Type	Description
`limit`	int, 1 to 100, default 10	Page size
`offset`	int, default 0	Page offset
`user_id`	string	Filter by exact user_id
`agent_id`	string (UUID)	Filter by agent
`start_date`	ISO 8601 date, UTC	Created on or after
`end_date`	ISO 8601 date, UTC	Created on or before

The response is {"data": [...], "limit", "offset", "count", "total"}; each item has id, workspace_id, user_id, agent_id and custom_args_values.

Troubleshooting

Symptom	Likely cause	Resolution
`403` or call rejected at Ringg	Your signalling IP is not allowlisted	Send Ringg the exact source IP or CIDR you originate from
`422 Session Interval Too Small`	`Session-Expires` below 1800 s	Raise it to 1800 s or more, or omit the header
TLS handshake fails or certificate is rejected	Connecting to the IP instead of the hostname	Use `sips:sip.ringg.ai:5061`. The certificate is issued for `sip.ringg.ai`, not for the IP
Call connects but there is no audio	RTP range blocked	Allow UDP `10000-60000` to and from the Ringg media addresses
No audio on a TLS trunk specifically	SRTP not offered, or an unsupported cipher suite	Ringg negotiates SDES-SRTP with `AES_CM_128_HMAC_SHA1_80`. Confirm your SBC offers `RTP/SAVP` with that suite, and that DTLS is not being forced
Agent does not answer as expected	`X-Agent-ID` missing or invalid	Confirm the UUID is correct and the agent is published
Context variables are empty	`X-Custom-Vars` malformed, or UUI not hex encoded	Check the `&` and `=` separators, and that `encoding=hex` is present
Callee lookup fails	`X-CLIENT-ID` does not match any `user_id`	Confirm the number format matches exactly what was uploaded
Transfer never completes	REFER not supported, or REFER too large and fragmented	Advertise `REFER` in `Allow`, shrink the UUI, and prefer TCP or TLS
Outbound calls never connect	Realm mismatch on digest or register auth	Send Ringg the exact realm your platform challenges with

Onboarding checklist

Configure the trunk, or contact Ringg

Enterprise workspaces set up the trunk in the dashboard. Otherwise, email admin@ringg.ai requesting a SIP integration, with these details so the trunk can be provisioned in one pass:

Company name and your Ringg workspace
Direction needed: inbound, outbound, or both
Your SIP signalling IP or CIDR, for the inbound allowlist
For outbound, what Ringg needs from you: trunk host, port, transport and authentication, with the exact realm for digest or register
Whether the agent needs to transfer calls, and the destination to transfer to
How you will pass context: X-Custom-Vars, or the User-to-User header if you are on Genesys Cloud

Ringg confirms the allowlist entry and returns your trunk configuration with the addresses for your firewall.

Apply your firewall rules

Point your trunk at sip.ringg.ai and allow the addresses Ringg provided on the signalling and RTP ports, in both directions.

Decide routing, context and transfer

Pick how the agent is chosen and how context is passed. If the agent will hand off to a human, confirm your platform accepts REFER and agree the destination.

Run a test call

Place a call in each enabled direction.

Two-way audio, the right agent answers, injected variables appear in the conversation, and the transfer lands. The call is in Logs.

​Before you start

An agent

An API key

​What each side provides

​Set up the trunk in the dashboard

​Network requirements

​SIP signalling

​RTP media

​Codecs

​Session timers

​How a call flows

​Inbound: your platform to Ringg

​Allowlisting

​Custom SIP headers

​Choosing which agent answers

​Passing context into the conversation

​X-Custom-Vars

​Using the values

​Genesys Cloud (BYOC)

​The header

​Encoding

​What Ringg does with it

​Keep the UUI small

​Outbound: Ringg to your trunk

​What Ringg needs from you

​Authentication modes

​Call transfer with SIP REFER

​What your platform must support

​Behaviour to expect

​Inbound callees

​Upload via CSV

​Upload via JSON

​Upload response

​List callees

​Troubleshooting

​Onboarding checklist

​Next steps

Add the trunk's numbers

Attach a number to an agent

Before you start

What each side provides

Set up the trunk in the dashboard

Network requirements

SIP signalling

RTP media

Codecs

Session timers

How a call flows

Inbound: your platform to Ringg

Allowlisting

Custom SIP headers

Choosing which agent answers

Passing context into the conversation

X-Custom-Vars

Using the values

Genesys Cloud (BYOC)

The header

Encoding

What Ringg does with it

Keep the UUI small

Outbound: Ringg to your trunk

What Ringg needs from you

Authentication modes

Call transfer with SIP REFER

What your platform must support

Behaviour to expect

Inbound callees

Upload via CSV

Upload via JSON

Upload response

List callees

Troubleshooting

Onboarding checklist

Next steps
