Create and manage a knowledge base for your agents

A knowledge base is a set of files and web pages that an agent looks up during a conversation, so it answers from your data instead of from its prompt alone. Use one for policies, price lists, FAQs or per-customer records such as orders; keep short facts the agent needs on every call in the prompt. In the dashboard: Sidebar → Inventory → Knowledge base. This chapter connects an agent to your data and your systems:

Page	What you do
Create a knowledge base (this page)	Build one from files and website URLs, configure CSV columns, test it in chat
Attach a knowledge base	Attach it to an agent, mention it in the prompt, add query phrases
Tools	Fetch data before a call, act during it, send results after it ends
Connect an app	Connect Google Sheets, Slack, calendars and other apps once per workspace for Integration tools

Before you start

Knowledge Base permission

Members need the Knowledge Base edit permission to create or change one.

An agent to use it

Optional now: you attach the knowledge base to an agent once it is Ready.

Create a knowledge base

This short video creates a knowledge base from a CSV and a web page, waits for it to finish training, and asks the test chat a question.

Creating and testing a knowledge base

Start

Click Create (on an empty page, under “Create your first Knowledge base”). The editor opens as Create knowledge base.

Name it

Enter a Name, for example Loan FAQs; it is saved as loan_faqs (“Saved as lowercase with underscores in place of spaces.”). You cannot rename it later.

Upload files

On the Upload files tab, drag files onto the box or click it to pick them. A CSV, TSV or PDF opens in a preview on the right; other file types upload without a preview.

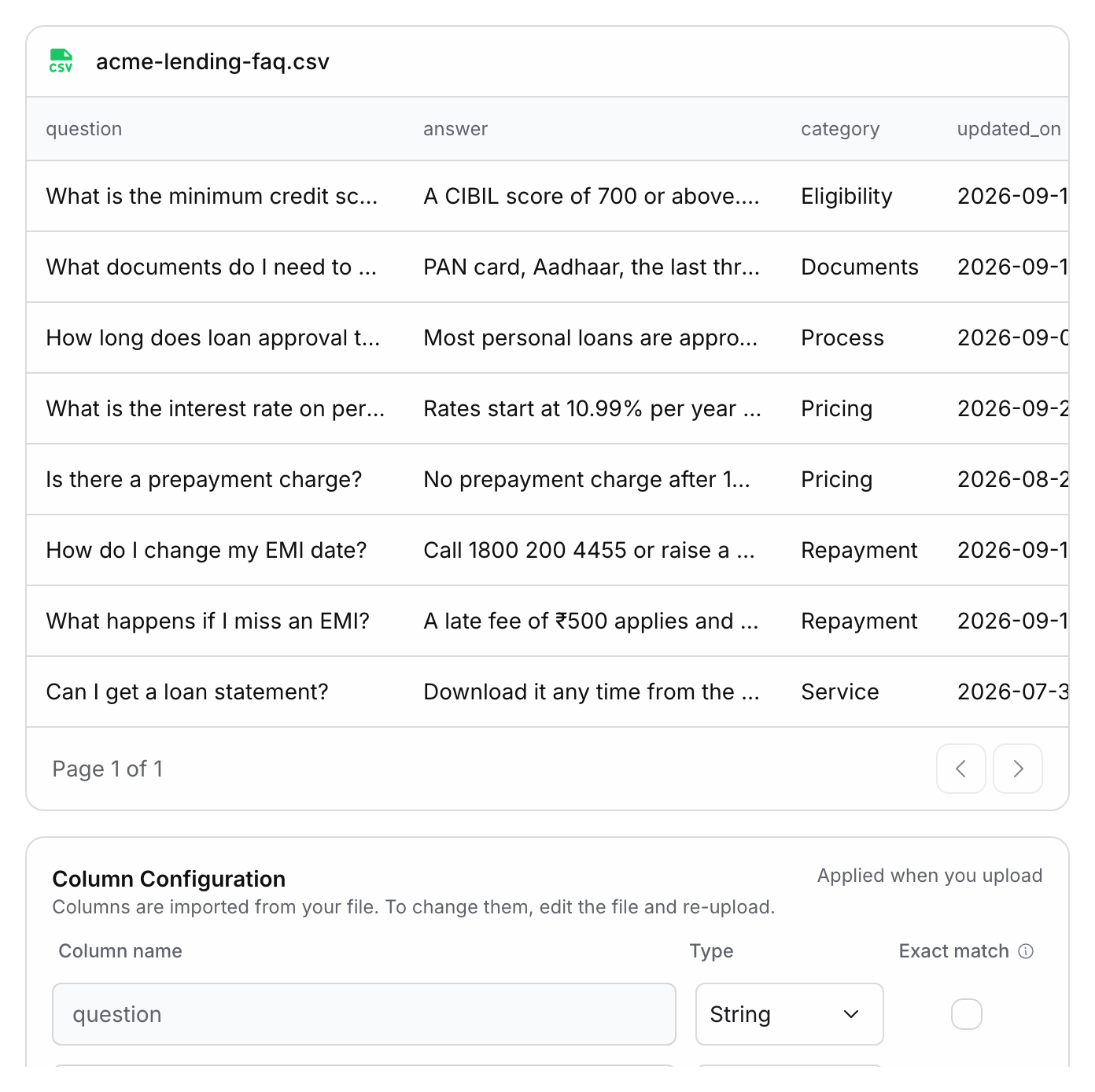

Preview of acme-lending-faq.csv with columns question, answer, category and updated_on and eight FAQ rows, above the Column Configuration card showing the question column as String with Exact match off — A staged CSV in the preview, with Column Configuration below

Add web pages (optional)

On the Add URLs tab, add pages in either of two ways:

Crawl: enter a site address, such as https://example.com, and click Fetch Links. Ringg lists the pages under that address (files on the site are skipped), 20 at a time; click Load more links for the next batch.
Under Include Links, enter one page and click Add New URL.

Fetched pages appear under New URLs, each ticked already (up to the 50-URL limit); untick the ones you don’t want. Only ticked pages are added. Click a URL to preview the text Ringg extracts from it. An address without https:// gets it added.

Check CSV columns

For a CSV or TSV, review Column Configuration under the preview. See Structured data.

Save

Click Save. You see “Knowledge base creation started” and the editor reloads on the new knowledge base while it trains. Clear all removes everything you staged.

In the editor, each file’s chip goes from Processing to Indexed. On the Knowledge Base list, the knowledge base shows Training, then Ready (see Statuses). The editor opens on the uploaded file’s contents; click the back arrow to reach the test chat.

To create one from code instead, see Do this with the API.

Structured data and column configuration

The upload tab notes: “Structured data (like CSV with clear columns) helps the AI find and match answers faster and more accurately than unstructured text.” Put records such as orders, branches or plans in a CSV with one header row, for example order_id,customer_name,mobile_number,status. When you stage a CSV or TSV, Column Configuration lists every header (“Columns are imported from your file. To change them, edit the file and re-upload.”):

Field	What you can do
Column name	Read-only, taken from the header row.
Type	String, Number, True/False or Date. Ringg pre-fills a guess from the column’s values; change it before you save.
Exact match	”Agent will look up exact keywords. Use this for specific details like Order ID or mobile numbers.” Off by default.

The settings are “Applied when you upload”. After upload, Type is fixed; only Exact match can change. Saving a change shows “Columns updated” and “Re-embedding started — the knowledge base will re-train.” ( puts it back in Training.)

Test it in chat

Open a Ready knowledge base. With no source selected, the right panel is a test chat: “Test results will be based on processed data from uploaded files”. Type a question in Ask a question about your data… and press Enter (Shift+Enter adds a line). Each answer lists the files it came from. To hear it in a real conversation, attach it and test the agent. Click a CSV, TSV or PDF file, or an added URL, to see its contents; the back arrow returns to the chat with the conversation kept.

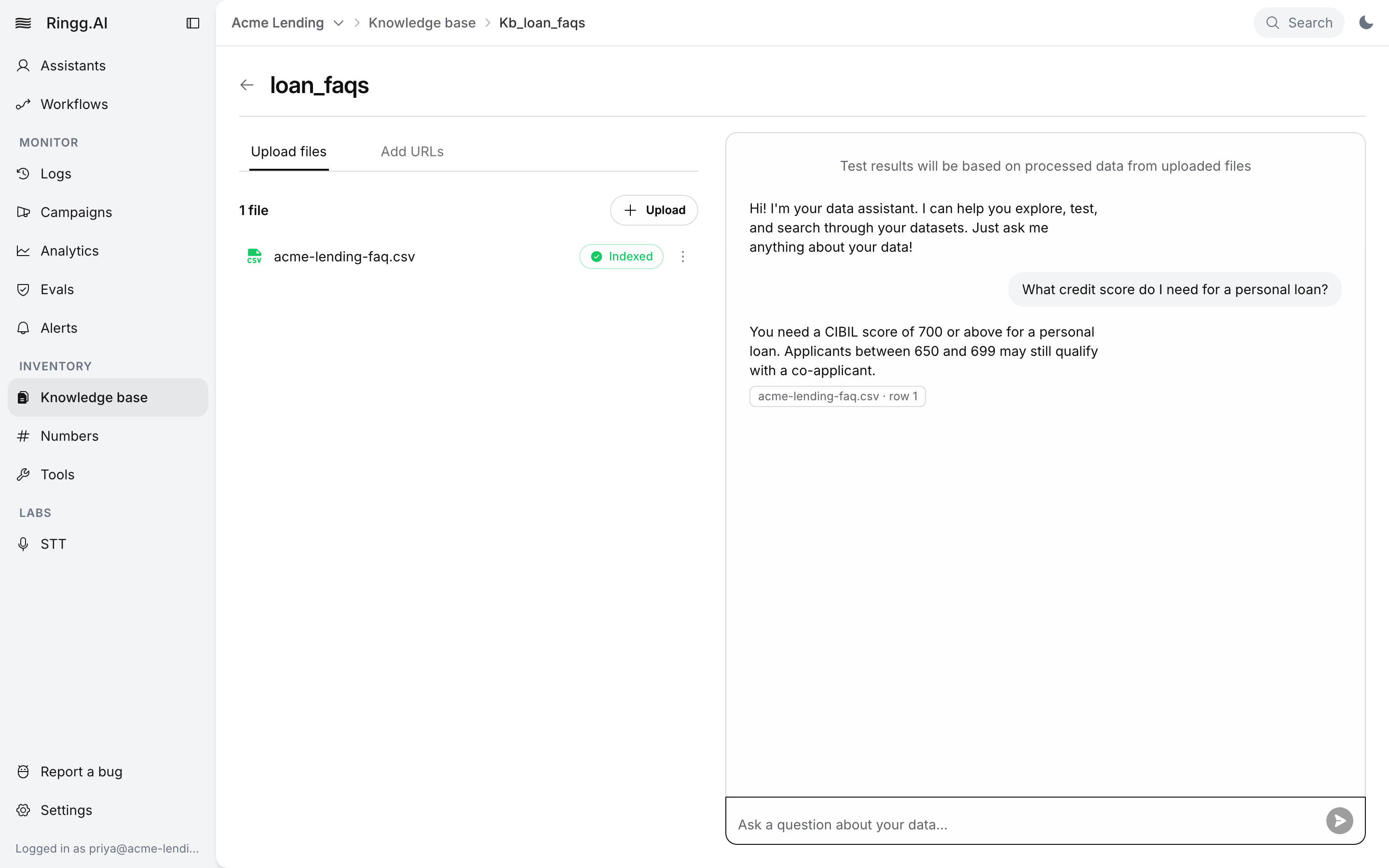

Knowledge base loan_faqs with acme-lending-faq.csv Indexed; the test chat answers What credit score do I need for a personal loan? with a CIBIL score of 700 or above, citing acme-lending-faq.csv row 1 — The test chat answering from the uploaded CSV

Statuses

The list shows each knowledge base’s Name (with “Last trained: 2h ago” or “Not trained yet”), Sources and Status. Statuses update on their own while training.

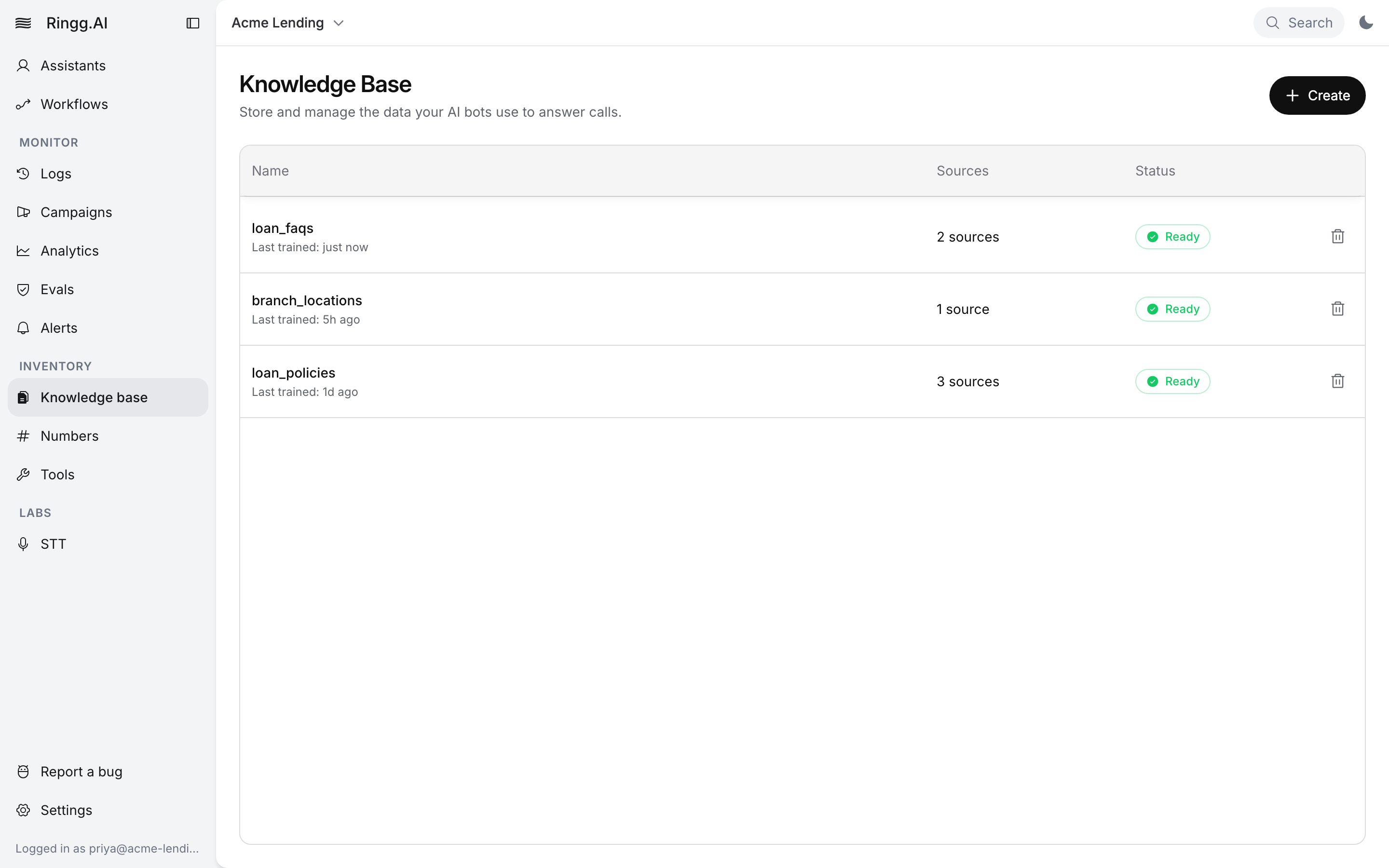

Knowledge Base page listing loan_faqs (2 sources, Last trained: just now), branch_locations (1 source) and loan_policies (3 sources), all with status Ready — The Knowledge Base list

Knowledge base status	Meaning
Training	Files are being processed, or it is re-training after a change. You cannot add sources or edit rows yet.
Ready	Processed and usable.
Partial failure	Some sources failed to process. Check each file’s status.
Failed	Processing failed.

File or URL status	Meaning
Pending upload	Staged in the editor, not saved yet.
Pending	Saved, waiting to be processed.
Processing	Being processed.
Indexed	Processed and searchable.
Failed	Could not be processed. Delete it and upload it again.

Edit a knowledge base

Click a row to open it. Changes need the Ready status; while it trains, Save shows “Knowledge base is still training”.

Add sources: upload files or add URLs, then Save (“Added to knowledge base”, “Processing started.”).
Replace a file: upload a file with the same name. “Replace File?” warns that “Replacing will overwrite the content.”; the old file is removed when you save.
Download or delete a file: open the ⋮ menu on its row. Deleting removes “This file and its indexed content”. Remove an added URL with its ×.
Edit rows (CSV and TSV): select the file to open its rows, 25 per page. Search them, Add row, click a row to Edit row, or select several and Delete n records. Values are validated against the column’s type.

Delete a knowledge base

On the list, click the trash icon on its row and confirm. Deleting removes the knowledge base with all its files, rows and column settings, and can’t be undone. It is detached from every agent automatically; remove any @ mentions of it from their prompts (Attach or detach a knowledge base).

Get better answers

Keep each knowledge base to one topic, such as loan_faqs or branch_locations. A focused set is easier to test, and you can attach several to one agent.
Remove outdated or conflicting documents before you upload. The agent can’t tell which version is current.
Upload text-based PDFs. A scanned PDF without searchable text gives the agent nothing to read.
Ask the test chat the questions your customers actually ask before you attach it.

Limits

Limit	Dashboard	API (per request)
File types	`.csv`, `.tsv`, `.pdf`, `.docx`, `.md`, `.txt`	`.pdf`, `.docx`, `.txt`, `.csv` (one chunk per row) and `.json`; anything else is read as plain text, with no column configuration
File size	20 MB per file	2 MB per file, 5 MB in total
Files	8 per knowledge base (URLs don’t count)	10 per request
URLs	50 per knowledge base	20 per request
FAQs	Not available	`faqs`: a JSON array of `{ "question", "answer" }`

The dashboard rejects other file types (including JSON) with “Unsupported file”, and larger files with “File too large”. A workspace can have up to 100 knowledge bases and upload up to 1 GB a day. API rate limits per workspace: create 10 per hour, edit 20 per hour, get one or list all 60 per hour, delete 10 per minute.

Do this with the API

Create Knowledge Base (POST /external/kb) takes multipart/form-data with kb_name and any of files, urls (a JSON array string) and faqs. You need an API key (Authentication).

curl --request POST "https://prod-api.ringg.ai/ca/api/v0/external/kb" \
  --header "X-API-KEY: $RINGG_API_KEY" \
  --form "kb_name=loan_faqs" \
  --form "files=@loan-policy.pdf" \
  --form 'urls=["https://example.com/loans/faq"]'

import { openAsBlob } from "node:fs";

const form = new FormData();
form.append("kb_name", "loan_faqs");
form.append("files", await openAsBlob("loan-policy.pdf"), "loan-policy.pdf");
form.append("urls", JSON.stringify(["https://example.com/loans/faq"]));

const response = await fetch("https://prod-api.ringg.ai/ca/api/v0/external/kb", {
  method: "POST",
  headers: { "X-API-KEY": process.env.RINGG_API_KEY },
  body: form,
});
console.log(await response.json());

import json
import os
import requests

with open("loan-policy.pdf", "rb") as f:
    response = requests.post(
        "https://prod-api.ringg.ai/ca/api/v0/external/kb",
        headers={"X-API-KEY": os.environ["RINGG_API_KEY"]},
        data={
            "kb_name": "loan_faqs",
            "urls": json.dumps(["https://example.com/loans/faq"]),
        },
        files={"files": ("loan-policy.pdf", f)},
    )
print(response.json())

The response returns:

string

The new knowledge base’s ID. Use it to poll, edit or delete.

string

pending at first.

integer

How many files were queued for processing.

A knowledge base created by API doesn’t appear on the Knowledge Base page, but it is listed in the agent editor’s knowledge base picker and works on calls. Knowledge bases created in the dashboard do appear in the API. The other dashboard actions map to these endpoints:

Dashboard action	Endpoint
Add or remove sources	Edit Knowledge Base: `PATCH /external/kb` with `kb_id` and `new_files`, `new_urls`, `new_faqs`, `files_to_remove`, `urls_to_remove` or `faqs_to_remove` (plus optional `new_files_metadata`), as `multipart/form-data`
The list	Get All Knowledge Bases: `GET /external/kb/all`
Open one	Get Knowledge Base by ID: `GET /external/kb/{kb_id}`
Delete	Delete Knowledge Base: `DELETE /external/kb/{kb_id}`

Poll Get Knowledge Base by ID until its status shows processing has finished:

curl --request GET "https://prod-api.ringg.ai/ca/api/v0/external/kb/550e8400-e29b-41d4-a716-446655440000" \
  --header "X-API-KEY: $RINGG_API_KEY"

const response = await fetch(
  "https://prod-api.ringg.ai/ca/api/v0/external/kb/550e8400-e29b-41d4-a716-446655440000",
  { headers: { "X-API-KEY": process.env.RINGG_API_KEY } },
);
console.log(await response.json());

import os
import requests

response = requests.get(
    "https://prod-api.ringg.ai/ca/api/v0/external/kb/550e8400-e29b-41d4-a716-446655440000",
    headers={"X-API-KEY": os.environ["RINGG_API_KEY"]},
)
print(response.json())

Troubleshooting

The Upload button is disabled

The knowledge base already holds 8 files (“Knowledge base can hold at most 8 files.”). Delete a file, or create a second knowledge base and attach both to the agent.

"No links found" after Fetch Links

The crawler found no pages under that address. Add the pages one by one with Add New URL.

Next steps

Attach it to an agent

Attach it once it is Ready, by dashboard or API, and mention it in the prompt.

Test the agent

Ask real questions on a test call.
